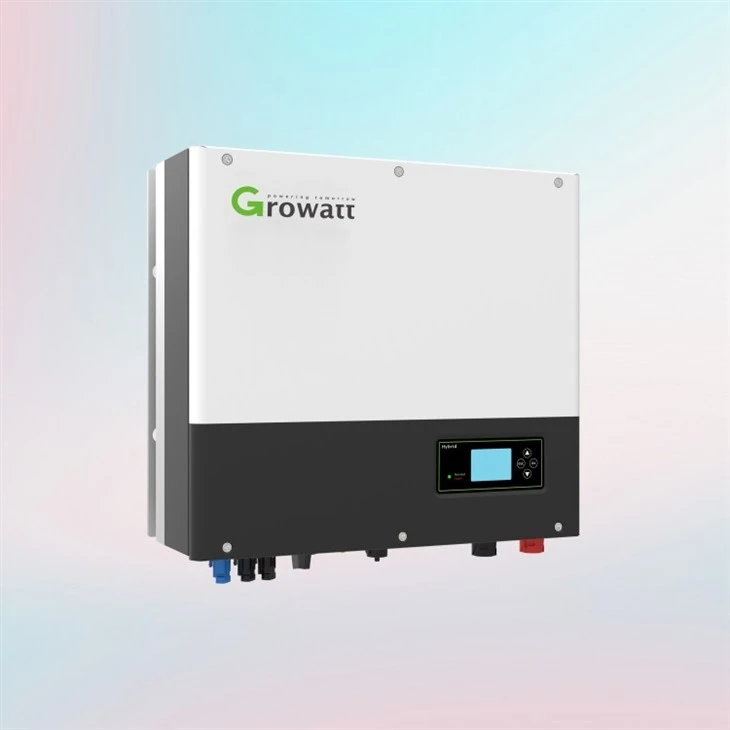

Three-phase Hybrid Solar Inverter

- hybrid solar inverter
- All-in-one parallel and off-grid unit
- UPS function with 10ms switching
- Capacity ratio up to 1.5
- Flexible system configuration
- Wide battery voltage range 100-550V
- 100% three-phase unbalanced output
- Independent backflow prevention control for each phase
- Reserved VPP interface
- Intelligent monitoring and operation and maintenance

Send Inquiry

Description

Technical Parameter

The 4-10KW three-phase grid-connected SPH series is suitable for small and medium-sized light storage system, it is an inverter with UPS function.The SPH series is suitable for small and medium-sized solar storage systems.

	SPH4000TL3BH-UP	SPH5000TL3BH-UP	SPH6000TL3BH-UP	SPH7000TL3BH-UP	SPH8000TL3BH-UP	SPH10000TL3BH-UP
Input data (PV)
Maximum PV input power	6000W	7500W	9000W	10500W	12000W	15000W
Output data (AC)
Rated power	4000W	5000W	6000W	7000W	8000W	10000W
Max. apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Input data (battery)
Continuous charging and discharging power	4000W	5000W	6000W	7000W	8000W	10000W
Output data (back-up power)
Max. output power	4000W	5000W	6000W	7000W	8000W	10000W
Max. apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Max. output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Efficiency
Max. efficiency	97.6%	97.8%	98.0%	98.2%	98.2%	98.2%
MPPT efficiency	99.9%
General data
Dimensions (width/height/thickness)	505/453/198mm
Weight	30kg
Operating temperature range	–25 °C ... +60 °C
Warranty: 5 years / 10 years	Available/optional
CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11，EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777 , G98, TOR Erzeuger
