HV Solar Battery





LFP3000 HV | High-Voltage Lithium Battery for Energy Storage

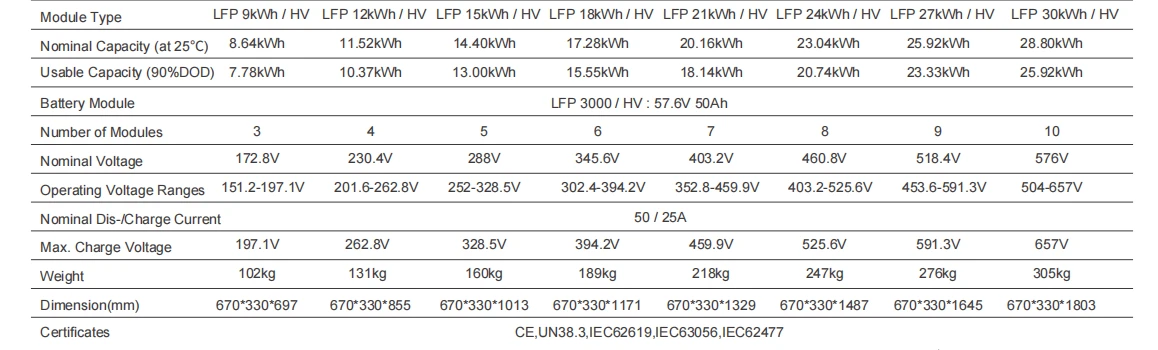

LFP3000 HV is a high-performance lithium iron phosphate (LiFePO4) battery, designed for residential, commercial, and industrial energy storage applications. With a modular design, it supports flexible capacity expansion from 9kWh to 30kWh and operates at voltages ranging from 172.8V to 657V. Featuring a smart BMS, it ensures optimized performance, safety, and longevity, delivering over 6000 cycles and a lifespan of 15+ years.















• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Cycle Life: >6000 cycles
• Lifespan: >15 years
• Nominal Voltage: 57.6V (per module)
• Operating Voltage Range: 151.2V - 657V (depending on configuration)
• Nominal Capacity: 50Ah (per module)
• Usable Capacity: 90% Depth of Discharge (DOD)
• Nominal Discharge/Charge Current: 50A / 25A
• Max Charge Voltage: 657V (for 10-module system)
• Protection Mode: Over-current, Over-voltage, Short-circuit, Under-voltage
• Cooling Type: Natural cooling
• IP Rating: IP54
• Communication Interface: CAN / WIFI
