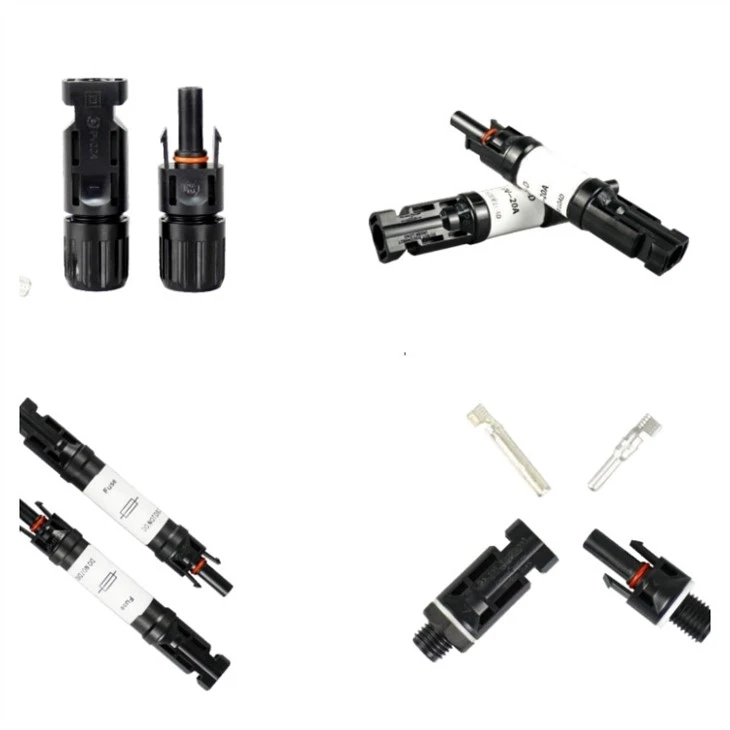

Pv Connector

Type:1000V Series
Contact materials：Tin plated copper
Flame Class: UL94-V0
Protection Degree: IP67

Description

Description of Solar Pv Connector

One of the key features of our solar pv connectors is their precision workmanship. Each connector is meticulously crafted to ensure a perfect fit, optimum conductivity, and maximum durability. Our connectors are designed to withstand the most demanding environments, from extreme heat to freezing cold temperatures.

In addition to their exceptional workmanship, our solar photovoltaic connectors are renowned for their outstanding performance. These connectors are optimized for maximum power output, which means that they can deliver more energy with less loss. They are also designed to withstand high levels of stress and strain, making them ideal for use in harsh outdoor environments.

Pv004-EN

Diode Connector

Type(1000V Series)	PV004-EN	PV004-D
Rated Voltzge	1000VDC	1000V DC
Rated Impulse Voltage	8000V
Rated Insulation Voltage	6000V
Rated Current	30A	10A,15A,20A
Standard	IEC 62852	IEC 62852
Protection Degree	Ip67	IP67
Contact Resistance	≤0.5mΩ	≤0.5mΩ
Pollution Degree	2	2
Ambient Temperature	-40℃~85℃	-40℃~85℃
Cable Cross Section Area	2.5mm^2 ,4mm^2 ,6mm^2
Insulation Materical	PCEXL9330	PPO
Flame Class	UL94-V0	UL94-V0

Fuse Connector & Plate End Connector

Fuse Connector

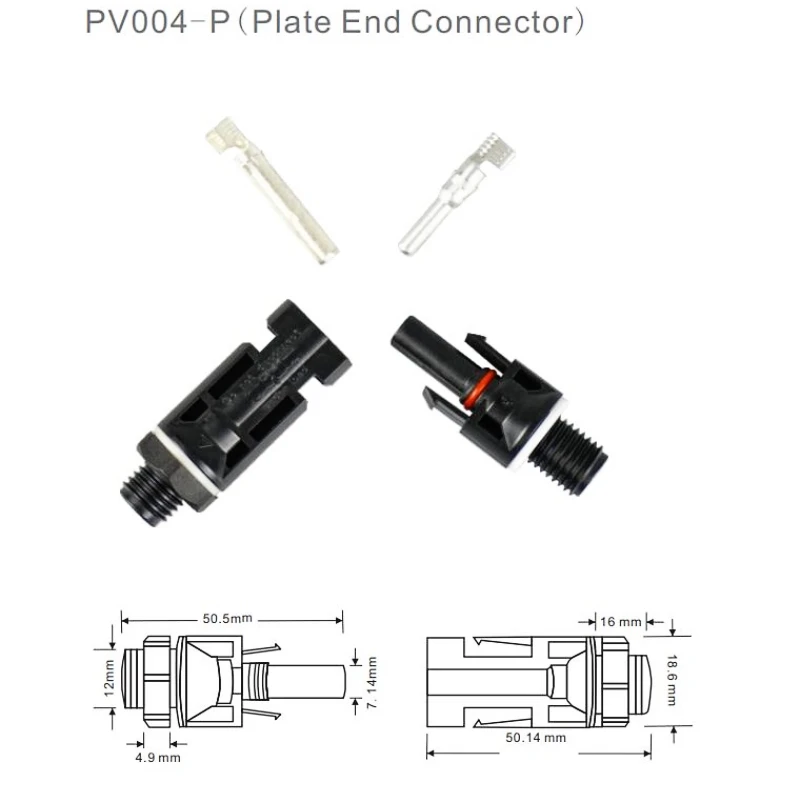

Plate End Connector

Type(1000V Series)	PV004-F	PV004-P
Rated Voltzge	1000V DC	1000V DC
Contact materials	Tin plated copper	Tin plated copper
Rated Current	10A,15A,20A	10A,15A,20A
Standard	IEC 62852	IEC 62852
Protection Degree	IP67	IP67
Contact Resistance	≤0.5mΩ	≤0.5mΩ
Pollution Degree	2	2
Ambient Temperature	-40℃~85℃	-40℃~85℃
Insulation Materical	PPO	PPO
Flame Class	UL94-V0	UL94-V0
Thread size		12mm
