Peak Power Watts: 340W (SP340M-60H)
Module Efficiency(%):20.15
Module Dimensions:1684 × 1002 × 35mm(66.85×39.53×1.38 inches)
Junction Box:IP 67 rated
Solar Cells:Mono PERC 158.75×158.75mm
Frame:Silver / Black Anodized Aluminium Alloy
Weight:19.0KG
Solar Home System Components
Material:Aluminum & SUS304
Install Angle: 0 to 60 degree
Wind Load:<60m/s
Snow Load: <1.4KN/m2
E-mail: kiko@wanhos.com
WhatsApp: 008613696955256
Description
Solar Home System Components

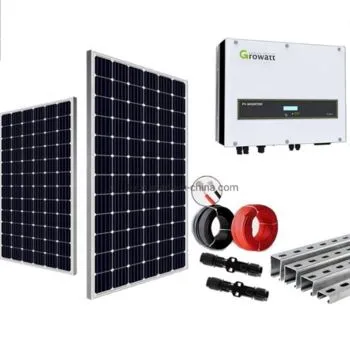

What's Included:
Mono Solar Panels
Off Grid Inverter
This is a multifunctional inverter/charger, combining functions of inverter, solar charger and battery charger to offer
uninterruptible power support with portable size.Its comprehensive LCD display offers
user-confifigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority
uninterruptible power support with portable size.Its comprehensive LCD display offers
user-confifigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Lead Acid GEL Battery
Nominal Voltage(VDC): 12
Nominal Capacity(AH): 200Max Discharge Current: 2000A(5 Sec)
Capacity(kWh): 2.4
Design Life: 15 years(floating charge)
Cell Per Unit: 6
Voltage Per Unit: 12
Nominal Capacity(AH): 200Max Discharge Current: 2000A(5 Sec)
Capacity(kWh): 2.4
Design Life: 15 years(floating charge)
Cell Per Unit: 6
Voltage Per Unit: 12
Main Disconnect Box
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
DC Cable & MC4 Connector & Y Branch
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
WHY CHOOSE Wanhos?
• Cost-effective - Factory manufacturing.
• Installation - Special design is available.
• Guarantee - Warranty 12 years and service life up to 25 years.
• Guarantee - Warranty 12 years and service life up to 25 years.
• Delivery - Globally warehouse.
Wanhos Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and ground open areas. Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide best services.
We are proud of the fact that more than 10GW solar project from worldwide used wanhos mounting systems.
If you have any special require, to contact us. Our design team will help you make the most suitable solution.
