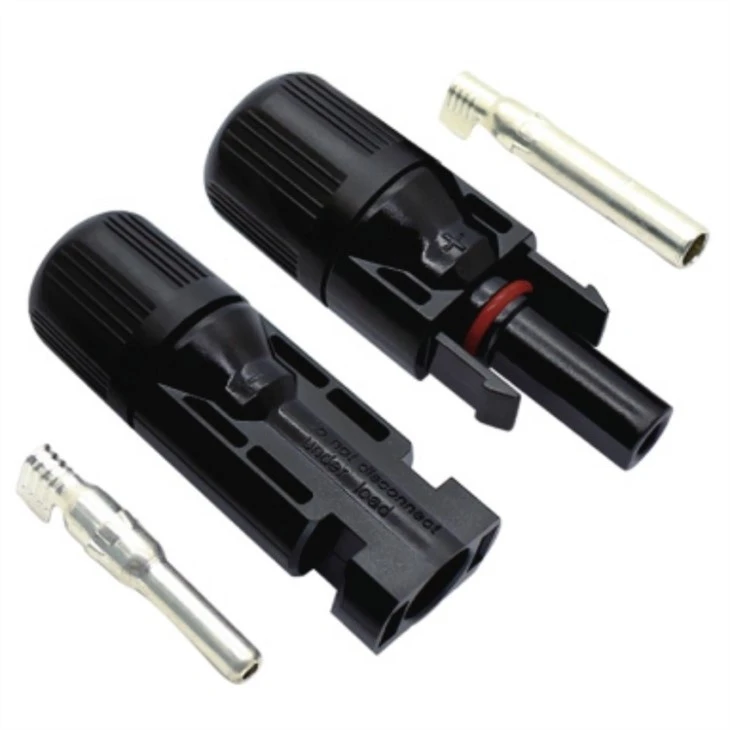

Mc4 Connector for solar
Wanhos MC4 solar cable connector is a connection device for connecting solar panel circuits. You can connect various circuit groups safely and quickly.
Description
Products Description
Features and Benefits of custom mc4 connector
1. Wanhos MC4 connector is a connector specifically designed for use in solar photovoltaic systems, enabling the efficient connection of photovoltaic panels and cables;
2. It is highly reliable, durable and corrosion resistant and is suitable for a wide range of extreme environments and harsh climatic conditions;
3. It mainly features fast installation and easy disassembly of solar arrays, saving installation time and costs and increasing the efficiency of solar PV systems;
4. The use of MC4 connectors ensures electrical safety and avoids safety hazards such as unstable wiring, ensuring the normal and stable operation of the solar PV system.

Products Specifications
| Product No. | MTCT1046 |
| Rated Voltage | TUV 1000V DC / UL 1000V DC |
| Rating Current | 20A^30A |
| Suitable cable cross sections | 2.5mm-6.Omm / 14AWG-10AWG |
| Pin dimension | 4. 0mm |
| Pollution degree | 2 |
| Proof voltage | 6000V AC (1Min) / 2200V DC (1Min) |
| Protection class | Class II |
| Connector Material | Copper , Tin Plated |
| Degree of Protection IP | IP67 (IEC 60529) |
| Withdrawal Force | ≥ 50N |
| Insertion Force | ≤50N |
| Temperature Range | -40°C~+85°C |
| Flame Class | UL94V-0 |
| Contact Resistance | ≤ 5mΩ |
| Connector Material | PPO |
More Details


Our Factory
Xiamen Wanhos Solar Technology Co. Ltd is a renowned high-tech enterprise that specializes in the solar PV field. The company is dedicated to providing superior solar PV products and solutions that are trusted for their excellent performance, advanced technology, and exceptional service. Our team is always engaged in research, design, manufacturing and sales of high-quality recyclable, dependable and cost-effective solar PV mounting systems. With years of experience and expertise, the company has become a leading PV solar product exporter in China, and our products have been installed and sold in over 100 countries and regions worldwide.

Workshop

Cast

Anodised

Detection
