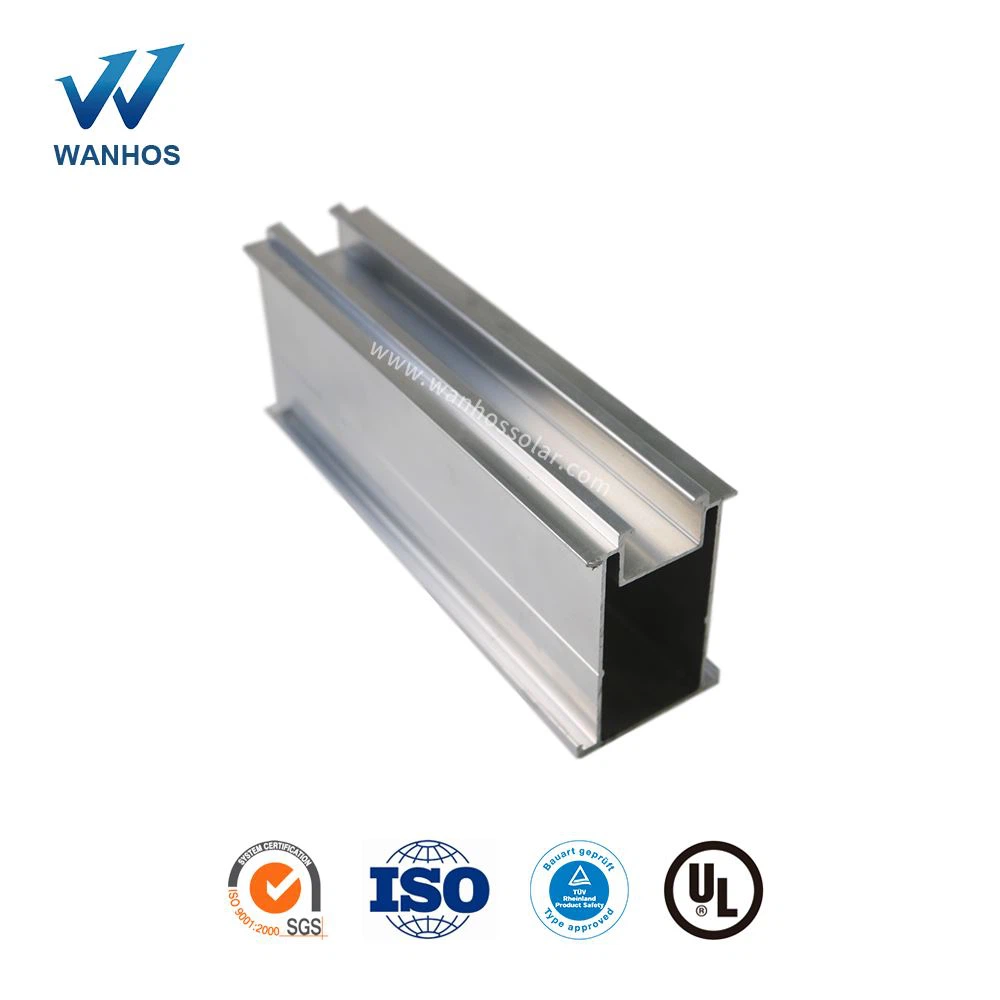

Solar Panel Mounting Al6005-T5 Aluminum Rail
1.Materail:Aluminum
2.Certificate:AS/NZS 1170&ISO9001&TUV&other
3.Warranty:25years
4.Easy to install,save time save money
Description
Rooftop Solar Panel Mounting System Al6005-T5 Aluminum Rail
| Color Anodized Aluminum Profile Rail Solar Mounting Frame | |||||
| Name | Ground mounting | Roof bracket | Carport | Agricultural bracket | Single column stand |
| Site | Ground | ||||
| Max wind load | ≤60m/s | / | <46m/s | <46m/s | ≤46m/s |
| Building height | / | <20m | / | / | / |
| Snow load | ≤1.4KN/m2 | <100cm | <100cm | <100cm | ≤1.4KN/m2 |
| Angle | 0~45° | As per requirement | 0~45° | 0~30° | 0~45° |
| Directions | Vertical,horizontal | ||||
| Standard | JIS C8955:2017/GB5009-2012 | ||||
| Body material | AL6005-T5 | ||||
| Bolt material | SUS304 | ||||
| Base material | Q235/Cement | ||||
| Surface treatment | Anodized | ||||
| Warranty | 10 years warranty,25 years life. |
Anodized Aluminum Solar Mounting Rail, Aluminum Rail for Solar Energy System, Solar Mounting Rail, Solar Mounting Stand, Solar Panel Structure Base
Necessary info. for us to design and quote
• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
