Adjustable Tilt Roof Solar Mounting System

Name: Adjustable Tilt Roof Solar Mounting System Manufacturers and Suppliers China - Factory Price - Wanhos
Brand: Wanhos
SKU: 70227794

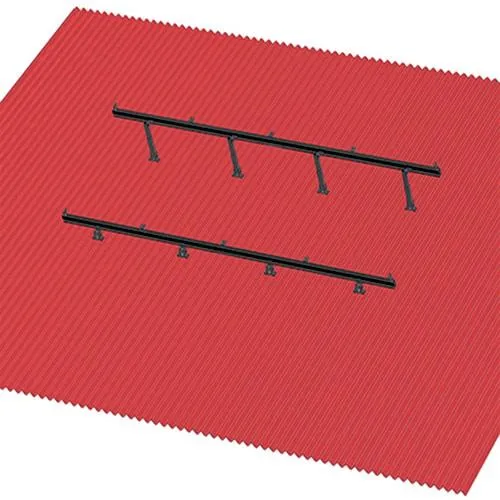

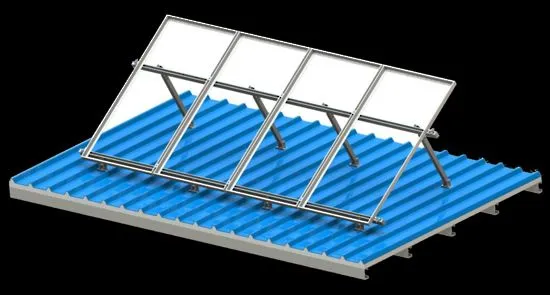

The tilt-in module can be put into the extruded rail from all kind of location, from residential and large commercial, right through to utility scale and can be high pre-assembly with the clamp to minimize the time and cost of installation. The module can be fixed or be adjusted as 10-15 degree,15-30 degree and 30-60 degree according to your exact requirement.

Send Inquiry

Description

2018 Adjustable Tilt System,tilt leg, Adjustable Tilt System

Item No.	Description	Leg Length
WAD-FL	AD Front Leg
WAD-RL10//15	AD Rear Leg 10/15deg	240~360mm
WAD-RL15/13	AD Rear Leg 15/30deg	340~680mm
WAD-RL30/60	AD Rear Leg 30/60deg	700~1200mm

braemac tilt frame

Solar-Metal-Roof-Mounting-Systems-Adjustable-Tilt-1

Benefits

1.Easy Installation.
The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2.Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3.High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Maximum Lifespan:
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5.Guaranteed Durability:
Wanhos Solar provides a guarantee of 10 years on the durability of all components used.

Specification

lnstall Site	Low profile roof of open field
Tilt Angle	10deg-60deg
Building Height	Up to 20m
Max Wind Speed	Up to 60m/s
Snow Load	Up to1.4KN/m2
standards	AS/NZS 1170 & DIN 1055 & Other
Material	Aluminum alloy & Stainless steel
Color	Natural
Anti-corrosive	Anodized
Warranty	Ten years warranty
Duratiom	More than 20 years

2018 Adjustable Tilt System,tilt leg, Adjustable Tilt System

Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.

Management Concept

Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.

2018 Adjustable Tilt System,tilt leg, Adjustable Tilt System

Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
