Adjustable Angle Solar Panel Mounting Bracket



Adjustable Angle Bracket

Adjustable Tilt System is developed to mount the module tilt a certain angle on a flat roof or ground. You can have the fixed or adjustable angle solution as 10-15deg,15-30deg and 30-60deg according to your exact requirement. Series product have the innovated aluminum rail, D-module, clamps and legs which can be pre-assembly to make the installation easy and quick for saving your labor cost and time.





Specification



lnstall Site	Flat Roof
Tilt Angle	10deg-60deg
Building Height	Up to 20m
Max Wind Speed	Up to 60m/s
Snow Load	Up to1.4KN/m2
standards	AS/NZS 1170 & DIN 1055 & SGS
Material	Aluminum alloy & Stainless steel
Color	Natural
Anti-corrosive	Anodized
Warranty	Ten years warranty
Duration	More than 20 years

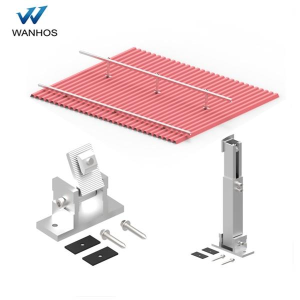

 Components

Benefits

1.Easy Installation.
The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2.Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3.High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Maximum Lifespan:
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5.Guaranteed Durability:
Wanhos Solar provides a guarantee of 10 years on the durability of all components used.



Installation Process

Project Case for Your Reference





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.   Management Concept   Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.



Necessary info. for us to design and quote • What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness • How many panel are you going to mount? _______Nos. • What's the tilt angle?____degree • What is your planned pv assmebly block? ________Nos. in a row • How is weather there,such as wind speed and snow load? ___m/s anit-wind speed and____KN/m2 snow load.
