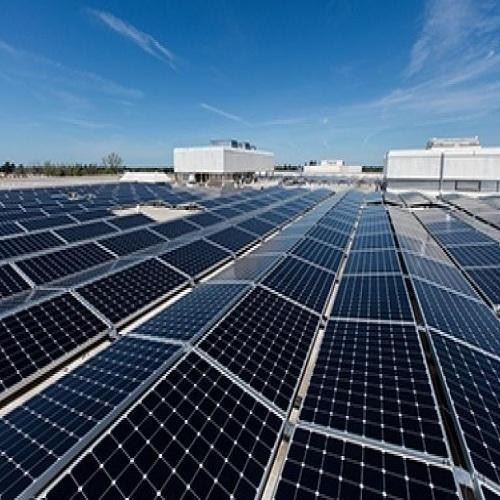

Aluminum Ballasted Mounting System
Install Site:Low profile roof pr open field
Tilt angle:5-15 deg
Building height:up to 20m
Max wind speed: up to 60m/s
Snow load:up to 1.4KN/M2
Email:sales07@wanhos.com
Description
Aluminum Ballasted Mounting System
The components of the ballast solution are made of a lightweight and strong aluminum structure, pre-assembled, and pre-cut to prevent corrosion and save installation time and labor costs.
Technical Information:
| Install Site | Low profile roof or open field |
| Tilt Angle | 5deg,10deg,15deg,20deg |
| Building Height | Up to 20m |
| Max Wind Speed | Up to 60m/s |
| Snow Load | Up to 1.4KN/m² |
| Standards | ASNZS1170 & ISO9001 & SGS & TUV & other |
| Material | Aluminum alloy & Stainless steel |
| Color | Natural |
| Anti-corrosive | Anodized |
| Warranty | Ten years warranty |
| Duration | More than 20 years |
Q: What is the warranty?
A:12 year warranty for the whole mounting system. And we also prepare reserve parts for each order
Q: Do you provide samples? Is it free or extra?
A: Sure. We could offer the component samples for free charge but do not pay the cost of freight.
Q: What are your terms of payment?
A: Payment<=1000USD,100% in advance. Payment>=1000USD,30% T/T in advance, balance before shippment.
Necessary info. for us to design and quote:
• What is your PV panels dimension?
___mm Length x___mm Width x__mm Thickness
• How many panels are you going to mount?
_______Nos.
• What's the tilt angle?
____degree
• What is your planned PV assembly block?
________Nos. in a row
• How is the weather there, such as wind speed and snow load?
___m/s wind speed and____KN/m² snow load.
