What Is A Solar Carport Racking？

The Dual Value Proposition

For commercial developers and asset owners, the solar carport structure represents a unique opportunity: a structure that generates revenue while providing essential shelter and protection for vehicles. It transforms a standard parking lot from a cost center into a powerful, revenue-generating asset.

However, designing and procuring this specialized structure is fundamentally different from standard ground-mount projects. You are not just buying a solar rack; you are investing in a high-grade civil engineering asset. The quality of your solar carport racking system determines the safety and long-term utility of the entire parking facility.

This procurement guide focuses on the critical decisions that impact cost and long-term usability: structural design, span length, and material selection. We will show you how to source a reliable solution that maximizes parking space and delivers the highest possible Return on Investment (ROI).

Structural Design Analysis: Maximizing Space and Strength

The primary goal of a commercial solar carport is to minimize obstruction. This means achieving the longest possible clear span with the fewest vertical columns. This design challenge significantly impacts the structure's cost and the complexity of the solar carport racking system.

Carport Structure Types

Understanding the structural differences is key to specifying your needs and comparing bids:

Standard Single-Row: Uses one column line, often placed over a single row of parking. This is the simplest and most cost-effective structure.

Double-Row (T-Frame): Covers two rows of parking with a column line in the center aisle. Offers excellent coverage but may impede traffic flow slightly.

Cantilever (Suspended): Uses columns placed outside the parking area, supporting the canopy from one side. This design maximizes clear parking space and is highly desirable, but requires a much stronger, more expensive foundation and heavier beams to support the extensive solar carport racking span.

The Long-Span Challenge

To minimize obstacles, you must achieve long spans between columns. This requires specialized engineering expertise and high-strength materials.

High wind and heavy snow loads (common in many commercial areas) mandate the use of high-yield strength steel (like Q355 or equivalent) for primary beams. Using lighter, less robust steel to save money results in more columns, defeating the purpose of a spacious parking structure. Always request structural calculations showing the deflection under maximum load to verify the integrity of the solar carport racking solution.

Cost Drivers: Materials, Aesthetics, and Integration

The cost of a solar carport structure is typically higher per watt than a ground mount. This premium is driven by material requirements and site-specific needs.

Material Cost Comparison

The choice of material affects cost, strength, and durability:

For large commercial solar carport racking systems requiring maximum span, heavy-duty steel usually offers the best long-term value.

Foundation and Installation Efficiency

The foundation is another major cost variable. The optimal choice depends on sub-surface conditions and project timeline:

Poured Concrete Piers: Most common, providing the highest stability but requiring more excavation, material, and curing time (extending the project schedule).

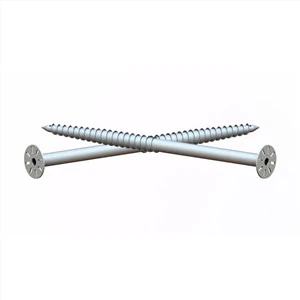

Screw Piles (Ground Screws): Offer a faster, less disruptive installation. They significantly reduce the need for site excavation and can lower overall labor costs, making them increasingly popular for parking lot installations.

By choosing highly pre-assembled solar carport racking combined with screw piles, you can drastically cut down on on-site labor and project turnaround time, leading to a faster ROI.

Drainage and Integrated Aesthetics

Unlike typical solar racks, carports must manage water runoff. Integrated gutter systems are essential but add complexity and cost to the racking structure.

Consider the aesthetics. A high-visibility commercial site may require premium finishing and concealed wiring. These requirements, while raising the initial CapEx, enhance the asset's value and corporate image, justifying the premium paid for the structural design.

Procurement Due Diligence: Mitigating Risk

Sourcing a solar carport structure is a purchase of specialized engineering. Your focus should be on verifying the supplier's structural capability and compliance.

Engineering Verification and Standards

The supplier must be able to demonstrate that their design adheres to stringent international structural standards, such as ASCE/SEI 7 for minimum design loads (wind, snow, seismic).

Demand Stamped Drawings: Ensure the structural drawings for the solar carport racking are reviewed and stamped by a professional engineer. This verifies the safety and compliance of the design.

Specify Load Requirements: Clearly define your project's maximum wind speed and snow load for the procurement team. A failure here is catastrophic and uninsurable.

Supplier Specialization and Experience

Carport design is a niche. A supplier specializing in solar carport racking understands the nuances of parking geometry, vehicular traffic flow, and ADA compliance (Americans with Disabilities Act).

Choose a partner with a proven track record in complex commercial projects. Their experience means fewer delays during permitting and installation, directly translating to lower soft costs for your organization.

Carports as High-Value Assets

The solar carport is a premium solar application that requires precise engineering to maximize both power generation and usable parking space. True value is found not in the cheapest hardware, but in the solar carport racking design that allows for longer spans, faster installation, and robust durability against high loads.

Focus on materials (high-strength steel), optimized foundations (screw piles), and verified structural integrity to minimize risks and unlock the full potential of your parking lot assets.
