Agri-PV Explained: How Dual-Use Solar Maximizes Land Value And Energy Output

The Symbiosis of Food and Energy

In the global race toward carbon neutrality, a long-standing conflict has existed between renewable energy expansion and the preservation of arable land. For years, developers had to choose between feeding the population and powering the grid. Today, Agri-PV (Agrivoltaics) has emerged as the definitive solution to this "land-use tug-of-war." As a dedicated B2B partner for EPC contractors and energy developers, we have seen this technology evolve from experimental plots to a mainstream asset class that maximizes land value on a global scale.

Agri-PV is the simultaneous use of land for both solar power generation and agriculture. By integrating solar arrays into active farming environments, landowners can generate two revenue streams from a single hectare. But beyond the financial incentives, the true value of Agri-PV lies in its engineering-designing structural systems that harmonize with biological needs. This guide provides a professional overview of how dual-use solar works, its impact on crop yields, and the structural requirements that make these projects viable.

The Core Concept: How Does Agri-PV Work?

At its heart, Agri-PV is based on the principle of "light sharing." Most crops reach a "light saturation point," beyond which additional sunlight does not increase growth and can actually cause heat stress or water loss. Solar panels are strategically placed to harvest this excess sunlight, converting it into electricity while providing a controlled microclimate for the plants below.

According to research from the Fraunhofer Institute for Solar Energy Systems (ISE), Agri-PV can increase land use efficiency by over 60% compared to separate energy and crop production. By utilizing specialized racking systems, developers can adjust the height, tilt, and transparency of the array to match the specific needs of the local ecology, creating a win-win scenario for both the farmer and the energy provider.

Maximizing Agricultural Yields Through Solar Integration

One of the most common misconceptions is that solar panels always hinder plant growth. In reality, a well-designed Agri-PV system acts as a protective shield, mitigating the effects of climate change on sensitive crops.

Evapotranspiration and Water Conservation

In arid and semi-arid regions, the shade provided by solar panels reduces soil temperature and lowers evapotranspiration rates. This can lead to a reduction in water consumption by as much as 20% to 30%. For high-value crops like berries, leafy greens, and vineyards, this controlled shade prevents sunscald and maintains fruit quality during extreme heatwaves.

Protection from Extreme Weather

Beyond shade, the physical presence of the Agri-PV support structure provides a defense against hail, heavy rain, and frost. By acting as a secondary canopy, the system reduces mechanical damage to delicate plants, often replacing the need for expensive plastic netting or temporary greenhouses.

The Structural Pillars of Agri-PV Design

Building a solar array in a farmer's field is vastly different from building one on a rooftop or a flat desert. The Agri-PV support structure must be engineered with agricultural operations as the primary constraint.

Elevated Ground Clearance

Unlike standard ground mounts, Agri-PV systems require significant vertical clearance. For cattle grazing, a height of 2 to 2.5 meters may suffice. However, for arable farming involving tractors, harvesters, and sprayers, the panels must often be elevated to 4 meters or higher. This height creates a massive "moment arm," requiring advanced structural calculations to ensure the system remains stable under high wind loads.

Wide Spans for Machinery Passage

Efficiency in modern farming relies on wide machinery. The spacing between the vertical piles of an Agri-PV system must be wide enough (typically 6 to 12 meters) to allow tractors to navigate without risk of collision. This requires long-span, high-strength aluminum or steel rails that can support the weight of the panels without sagging over time.

Foundation Sensitivity: Ground Screws vs. Concrete

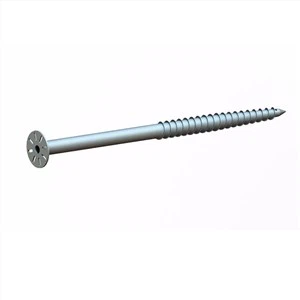

Preserving soil health is a core tenet of agrivoltaics. Many developers prefer ground screws over concrete foundations. Ground screws are less invasive, involve no chemical leaching into the soil, and can be completely removed at the end of the project's life, returning the land to its original state.

Key Configurations: Overhead vs. Vertical Systems

There is no "one-size-fits-all" approach to Agri-PV. The choice of configuration depends heavily on the type of agriculture being practiced.

Overhead Systems (High-Rise): Best for orchards, vineyards, and high-value vegetables. These provide a full canopy over the crops but require the most significant structural investment.

Vertical Bifacial Systems: These involve panels installed vertically in rows, like fences. They take up very little ground space, allowing for standard plowing between rows. They are highly efficient at capturing morning and evening sun, making them popular for grain and forage production.

Greenhouse Integrated PV: Replacing traditional glass or plastic with semi-transparent solar modules, perfect for year-round climate-controlled cultivation.

Overcoming Technical and Regulatory Challenges

While the benefits of Agri-PV are clear, the transition requires professional expertise to navigate technical hurdles. The increased height of the racking means that wind load becomes the dominant engineering challenge. Furthermore, the light distribution underneath the panels must be modeled accurately to avoid "permanent shade zones" that could lead to uneven crop ripening.

From a regulatory perspective, many regions are now introducing specific "Agri-PV" certifications to ensure that the land remains primarily agricultural. This often involves maintaining at least 80% of the original crop yield. For EPC contractors, this means choosing a racking partner who can provide detailed shading simulations and structural certifications that meet these strict transparency and safety standards.

A New Era for Rural Energy

In summary, Agri-PV represents the future of sustainable land management. By merging solar technology with traditional farming, we can achieve energy security without sacrificing food security. The success of these dual-use systems depends on more than just the panels; it requires a structural foundation that respects the needs of the farmer, the health of the soil, and the physics of the environment.

As a specialist in solar structural engineering, we believe that every hectare has the potential to do more. By choosing a high-clearance, professional-grade support system, you turn a simple field into a high-efficiency power plant that continues to feed the world. If you are planning an Agri-PV project and need engineering support for high-span structures or low-impact foundations, our team is ready to help you bridge the gap between energy and agriculture.
