Solar Rack Ground Mount



Solar Rack Ground Mount

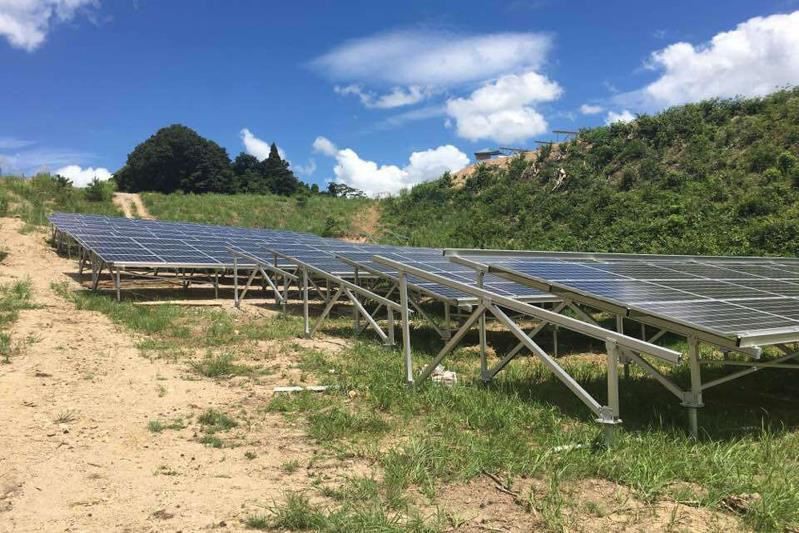

Solar Panel Mounting Brackets are made for photovoltaic ground systems which featured with light weight, highstrength and recyclable material. They can be mounted on concrete foundation or ground screws. Customized tilt angles meet complex requirements of construction site and use effectively energy of sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.





Install site:	Open Filed
Tilt Angle:	10 °~60 °
Module Type:	Any sizes, Framed or Frameless
Max Snow Load:	1.4KN/m2
Max Wind Load:	60m/s
Material:	AL6005-T5 and Stainless steel SUS304
Standard:	AS1170.2 TUV SGS
Foundation:	Ground screw, Concrete
Warranty:	12 years warranty and 25 years service life



Features



· No in field drilling, cutting or welding, due to the highly prefabricated components

· Variable inclination of 0-45 deg or customized degree

· Installed with concrete or ground screw foundation

· Standard designing can load 60m/s wind and 1.8KN/M2 snow

Features:

1.Quick Installation:Professional design and more than 40% pre-assembled.

2.High Quality & Good Price:High quality with most competitive prices.

3.Custom designed

4.Flexible:All types of solar panels.

5.Safety Guarantee:Stand up to the international structure load standard.

6.Strictly Quality Controt Strictly control to ensure the structural strength and the life of system.

7.Guarantee:12 years guarantee and 25 years duration.







What necessary info. for us to design and quote?

A:1.The dimension of the solar panel? _________(Length*Width*Thickness)

2.How many solar panels do you plan to install for the project? ______pcs.

3.What is the tilt angle for solar panel? _______degree.

4.Could you pls give us the layout of solar panel array? if not, pls tell us the size (Length and Width) of your installation site?

5.How tall is the lowest height from the solar panel to the ground? _______mm

6.What installation orientation for solar panel? _______(Horizontal or Vertical).

7.What's wind speed and snow load? ___m/s anit-wind speed and____KN/m2 snow load.

8.Which foundation you need for your coming ground mounting system? ______ (ground screw/concrete/pile/pole )

9.If you can, plese tell me Latitude and longitude of your installation site.
