Lightweight 100% Aluminum Ground Solar Mounting System



AL-Ground Mounting System is made of 100% aluminum to mount on concrete strip foundation or ground screw. It is featured with lightweight, strong structure, and recyclable material. Wanhos Solar AL-Ground Mounting System, with pre-assembled Beam, the size of the legs and the B-rail is manufacturing in the factory avoid welding and cut on the spot, saving your time and cost.

· Easy Installation

D-module can be put into ER Rail from any position So the parts can be pre-assembled on factory to save your install time on site.



· Safety and Reliability

Check and test the structure strictly to against the extreme weather condition.



· Flexibility and Compatible

Smart design reduce the difficulty of the installation on the most condition.



· 10 Years Warranty

Provides a 10-years warranty for the material and structure.

Product Information



Installation site	Open Field
Max wind speed	up to 60m/s
Max snow load	up to 1.4KN/m²
Moudle type	Framed or framless
Moudle orientation	Portrait
Rail material	Anodized aluminum
Fasten Material	Stainless steel
Foundation	Concrete with pre-buried bolts
	Ground Screw

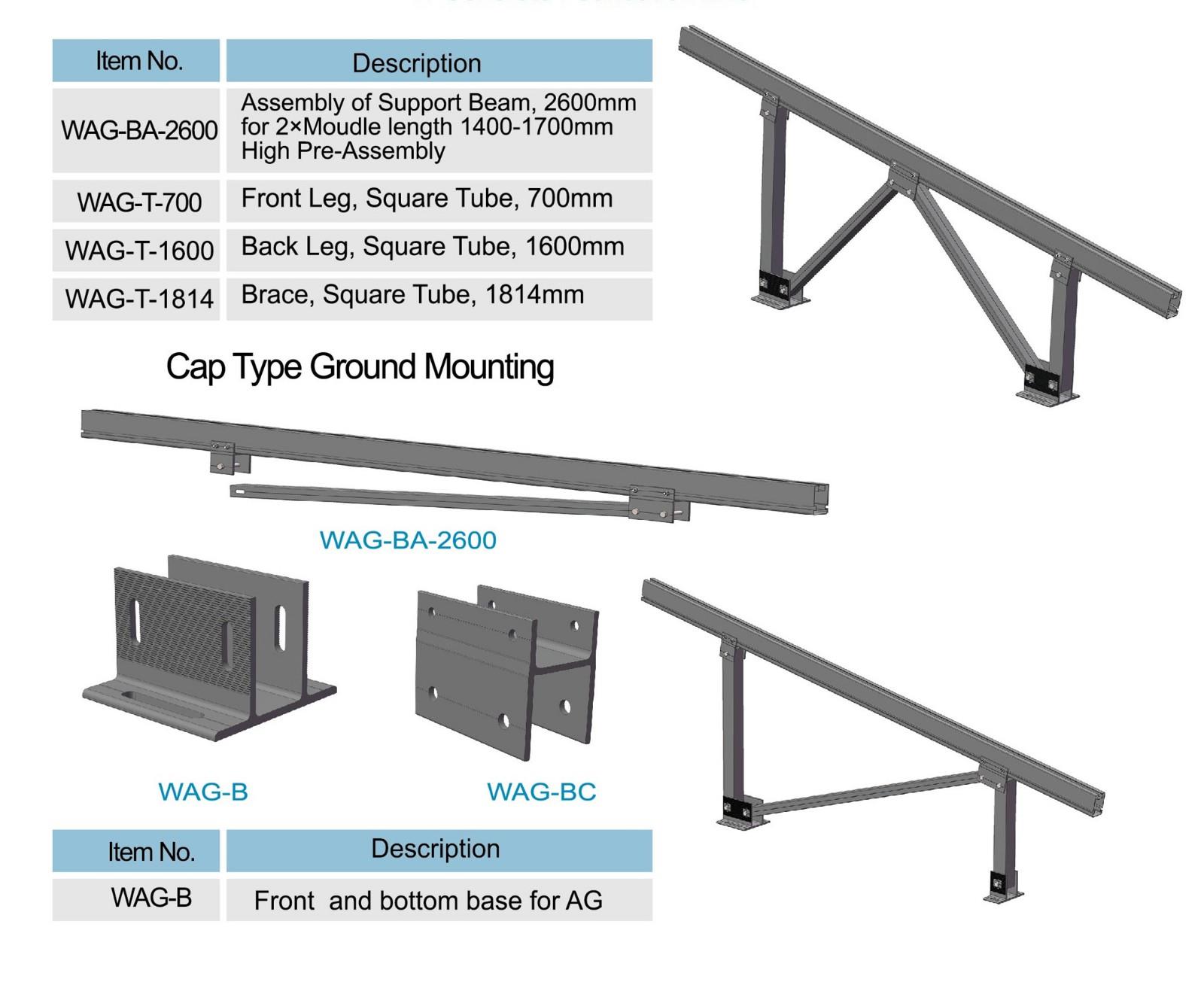

Product Componen
