Solar Panel Mounting Aluminum Bracket Manufacturers

Name: Solar Panel Mounting Aluminum Bracket Manufacturers Manufacturers and Suppliers China - Factory Price - Wanhos
Brand: Wanhos
SKU: 97416370

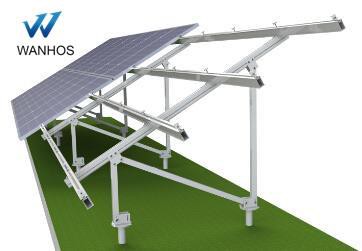

Aluminum Ground Mounting System is made of 100%aluminum to mount on concrete strip foudation or ground screws.
It features with light weight, strong structure, and recyclable material.

Send Inquiry

Description

Solar panel mounting aluminum bracket manufacturers

_01

_03 Wanhos Solar AL-Ground Mounting System with pre-assembled beam, the size of the legs and the B-Rail is manufactured in the factory avoid welding and cut on the spot, saving your time and cost.

Our mission is to simplify your installation and ensure the structure safety. Wanhos Solar your best choice.

aluminum ground mounting system 06

Specification

lnstall Site	Open Field
Module Type	Framed&Frameless
Module Orientation	Portrait
Max Wind Speed	Up to 60m/s
Snow Load	Up to1.4KN/m2
standards	AS/NZS 1170 & SGS& ISO9001
Main Material	Anodized Aluminum
Fasten Material	Stainless Steel
Warranty	10 years
Duratiom	More than 20 years

Detail of Aluminum Ground Mounting Brackets

Pre-assembled Beam

Save your Installation time and labor cost

W Type Beam

N Type Beam

WAG-BA N type

Best Selling Aluminum Solar Panel Ground Racking System

Benefits

1.Easy Installation.
The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2.Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3.High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Maximum Lifespan:
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5.Guaranteed Durability:
Wanhos Solar provides a guarantee of 10 years on the durability of all components used.

Project Case of Aluminum Ground Mounting System

_14

_16

Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.

Management Concept

Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.

_18

_20 _21

Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.

.jpg
