Wholesale Earthing Lugs PV Module Solar Mounting Bracket System Grounding Lugs

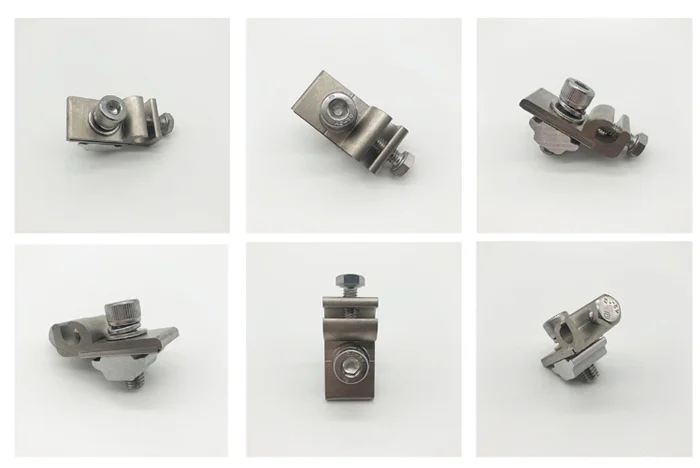

Wanhos Earthing Kit Grounding Lugs are a great choice for quick installation of one continuous grounding conductor or as a jumper to multiple locations. Grounding lug is a grounding component for solar modules and solar racking systems allowing easy termination to the ground wire.







Service Years	About 25 Years
Guarantee Years	10 Years
OEM&ODM	Available
Materials	Aluminum 6005 -T5 & Stainless steel 304/ Customized accepted
The Inclination Angle	10-60 degrees
Maximum wind speed	60 m/s
Snow load	Within 1.5m
Surface preparation	Anodizing, Stainless
Certificate	TUV, CIQ, ISO9001:2015, CE, SGS

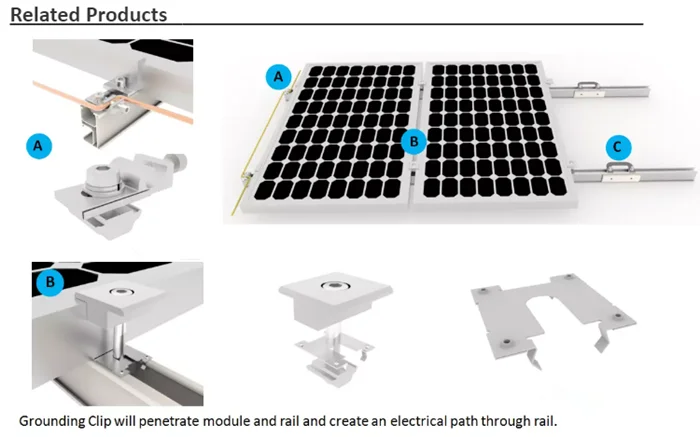

     Components

   Advantages



1. Widely Application

The structure is Aluminum Asphalt Shingle Roof Flashing L Foot Kit , with the quality of corrosion-resistance,light-weight, and strong intensity. It can be used in extremely bad installation condition.

2.Strong Compatibility

The structure can not only fit for different PV kits but also work with different PV arrangements which can be interchanged randomly.

3.Safety and Reliability

A load-bearing, wind resistance, and seismic resistance have been given sufficient consideration. All of these functions have been tested extremely, which will ensure the safety of the system.

4.Easy Installation

Most of the parts can be pre-assembled on the factory, which not only can to save your install time but also your cost.

5.Flexibility

Considering the construction error, the structure has been well-design that make it can adjust flexibly.



   Installation

















Necessary info. for us to design and quote • What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness • How many panel are you going to mount? _______Nos. • What's the tilt angle?____degree • What is your planned pv assmebly block? ________Nos. in a row • How is weather there,such as wind speed and snow load? ___m/s anit-wind speed and____KN/m2 snow load.
