Ground Screws Solar Mounting

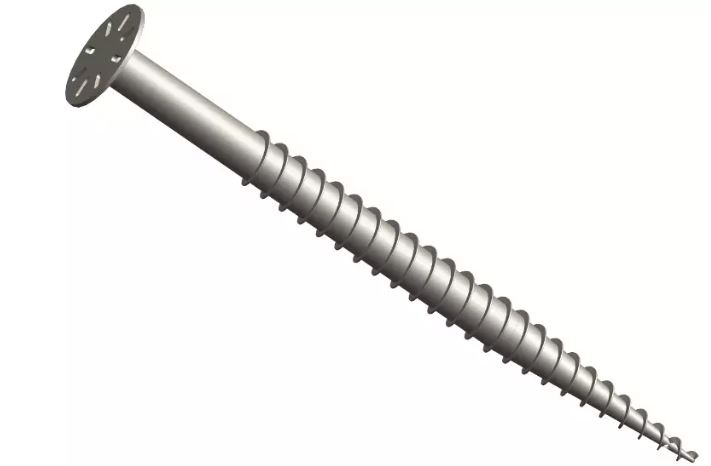

Item Name Ground Screw (Plum hole) Size Ø76* 1600 Material Q235 Surface Treatment Hot Galvanizing
Description
![O0{DH}7GA~45LI$$]Q@QJ(6](/Content/upload/201968749/201911181131404459248.jpg)
Ground Screw Price Chinese Manufacture Aluminum Ground Screw Pile For Solar Energy System Wanhos Solar designs ground base mounting structures for different solar ground systems. The main material is aluminum, which is strong but light-weighted. And it also recyclable material, which works well with renewable energy. Except for ground screw base, you can also choose the concrete base.
The design tilt angles meet complex requirements of construction site and use effectively energy of sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.
| High Strength Spiral Metal Pile Solar Steel Foundation Spike Ground Screw | |||
| Size | Material | ||
| Ground Screw | Ground Screw (Plum hole) | 76*T3.0* 1200~3000 | Q235 |
| Ground Screw (Slotted hole) | 76*T3.0* 1200~3000 | Q235 | |
| Ground Screw(Flat type) | 80*T3.0*1200~2000 | Q235 | |
| Ground Screw | Ground Screw(3 Nut Welded) | 76 *T3.0*1200 | Q235 |
| Adjust Flange Screw | Adjust Flange Screw(Plum hole) | 60*T3.0*600 | Q235 |
| Adjust Flange Screw | Adjust Flange Screw(Slotted hole) | 60*T3.0*600 | Q235 |
| Item | |
| Name | Ground Screw (Plum hole) |
| Size | Ø76* 1600 |
| Material | Q235 |
| Certificate | NID/JIS/ISO |
| Surface Treatment | Hot Galvanizing |
High Strength Spiral Metal Pile Solar Steel Foundation Spike Ground Screw
Wanhos Screw Foundation Systems is the intelligent alternative fixing method for all types of installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Our screw foundations are already being used in Australia, Germany, Japan and China due totheir countless advantages over concrete and their positive environmental properties. Our ground screw are installed in a matter of minutes, with no waiting time and immediately usable and able to withstand pressure, and the ground is restored to its original state by simply unscrewing the device. The ground screws are reusable and can be relocated as many times as necessary.
Our screw foundations, made of Q235(Hot Galvanizing), can guarantee long service life due to high resistance to corrosion.
| Mount Type | Ground screw |
| Applicable site | open area |
| Module Orientation | landscape or portrait |
| Wind load | 130mph(60m/s) |
| Snow load | 30psf(1.4KN/m2) |
| Material | aluminum alloy and stainless steel 304 |
| Warranty | 12years |
Example Applications
Screw piles have the capability to handle various loadings, the System screw pile can be used in all of, but not limited to, the following: Static loads(e.g. under buildings)
Alternating & Vibratory loads(e.g. under pumps jacks & compressors)
Temporary buildings Permanent buildings-residential and commercial property Foundation repair & underpinning Pathways Docks and decks Seed and grain storage installations Wind power generation installations
