Mounting Solar Panels on Roof Wanhos Tin Roof Solar Mounting System facilitates the rapid mounting of framed PV modules on trapezoidal metal sheet roofs with minimum thickness 0.8mm, only four components are required to install the modules directly to the roof. A base mounting clip is 100mm or...

Product details

Mounting Solar Panels on Roof

trapezoidal metal roof solar racking system suppliers




Wanhos Tin Roof Solar Mounting System facilitates the rapid mounting of framed PV modules on trapezoidal metal sheet roofs with minimum thickness 0.8mm, only four components are required to install the modules directly to the roof. A base mounting clip is 100mm or 140mm long, therefore easy to carry and attach to almost all trapezoidal and sandwich roofs. The EPDM sheet is in the package to seal the screw against the metal sheet.



1. The system contains only four components.
2. quicker the installations and saves time.
3. EPDM gaskets under attachments double protection from leaks.
4. Attachments mount directly to sheet metal thus eliminating the need for long rails.
5. Base mountings clip is 100mm or 140mm long, easy to attach on trapezoidal roofs.

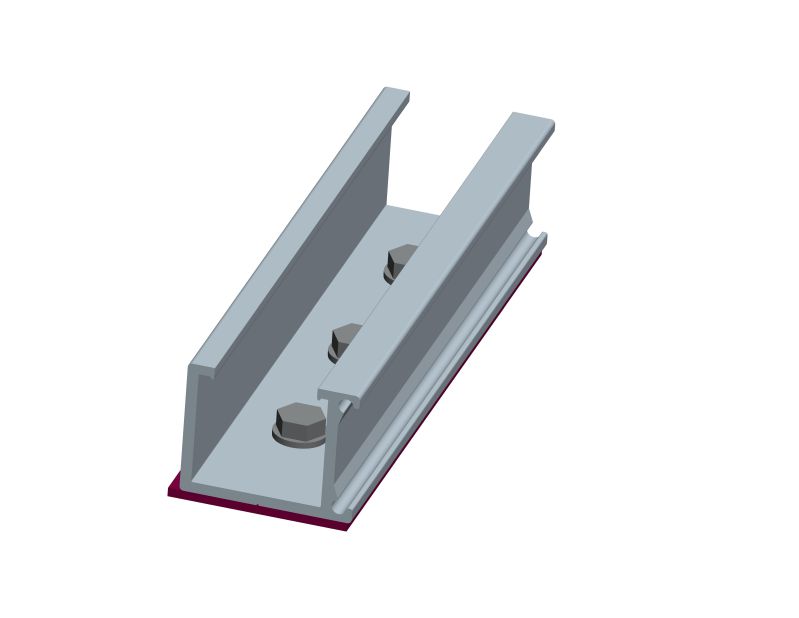

Roof attachments for metal sheet roof mounting system, trapezoidal metal roof solar racking system suppliers

End clamp for metal sheet roof mounting system
Roof attachment
End clamp
Inter clamp for metal sheet roof mounting system
Self-piercing screws for metal sheet roof mounting system
Inter clamp
Self-piercing screws
