Solar panel ground mounting systems

Solar panel ground mounting systems

About us

Xiamen Wanhos Solar Technology CO., Ltd is a high-tech enterprice in solar PV field specializing in solar PV products with advance technology and excellent services.



Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and cost-efficient solar PV mounting system solutions.



As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than 100 countries and regions since it established.



Solar panel ground mounting systems



Introduce for Solar panel ground mounting systems

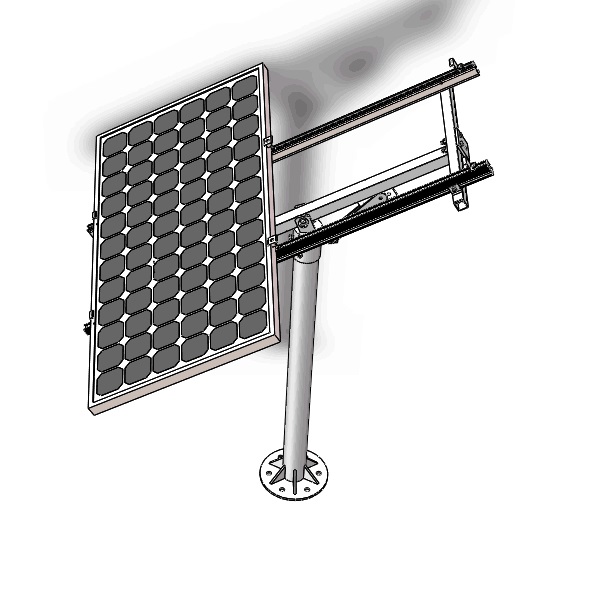

Pole Mounting System is designed to install solar panels on a single pole. According to different conditions, several kinds of solutions are available.



Wanhos Solar Pole Mounting System takes the importance of safety and duration, the system have been calculated compatible with the structural machines and tested strictly.



Material used include galvanized steel and anodized aluminum, with great anti-corrosive suitable for outdoor using.



Components Overview for Solar panel ground mounting systems



Solar panel ground mounting systems

POLE MOUNT 2#



Features

Material: Hot galvanized steel Q235

High integrated to reduce the bolt

Intallation aera of modules: up to 3.2 m2(wind speed < 45m/s)

Foundation: Concrete with pre-buried bolt


Item No.: WPM02-01

Pole support for 2pcs module (1580 x 808mm)

Pole: OD89 x 1490mm x 1pc

Beam: 50 x 900mm x 1pc

Adjustable bar:  1pc

Accessories and fastens



Note: The length of the beam and pole can be customized for different conditions.


Solar panel ground mounting systems

POLE MOUNT 6#



Features

Material: Hot galvanized steel Q235

High integrated to reduce the bolt

Intallation aera of modules: up to 8.3 m2(wind speed < 45m/s)

Foundation: Concrete with pre-buried bolt


Item No.: WPM06-01

Pole support for 6pcs module (1580 x 808mm)

Pole: OD140 x 1490mm x 1pc

Beam: 80 x 1300mm x 2pcs

Adjustable bar:  1pc

Accessories and fastens



Note: The length of the purin,beam and pole can be customized for different conditions.


Solar panel ground mounting systems

POLE MOUNT 8#



Features

Material: Hot galvanized steel Q235

High integrated to reduce the bolt

Intallation aera of modules: up to 11.5 m2(wind speed < 45m/s)

Foundation: Concrete with pre-buried bolt


Item No.: WPM08-01

Pole support for 8pcs module (1580 x 808mm)

Pole: OD165 x 1490mm x 1pc

Beam: 100 x 1800mm x 3pcs

Adjustable bar:  1pc

Accessories and fastens



Note: The length of the purin, beam and pole can be customized for different conditions.





Benefits for Solar panel ground mounting systems



Easy Installation: Integrated design for the support pole minimizing the time and cost of installation.



Safty: Design and check the structure according to structural machines and installation acts.



Excellent Duration: For outdoor using, all the material selected with high-class anti-corrosive protection.



Great Flexibility: The angle can be adjusted according to the actual needs of the installation site.
